Maximum Performance

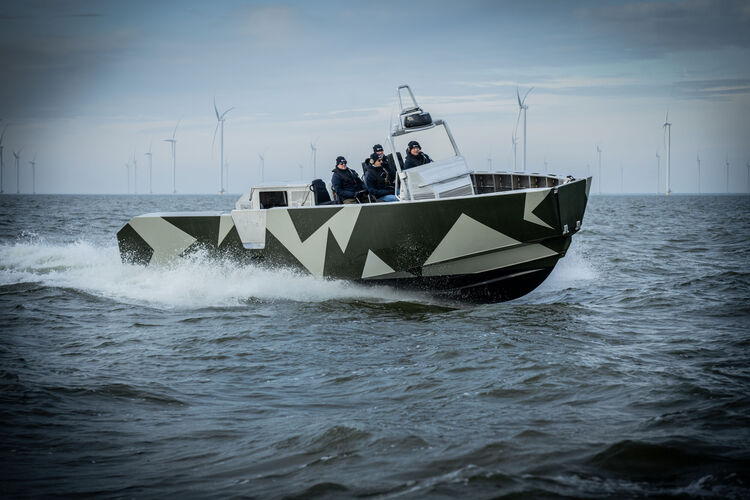

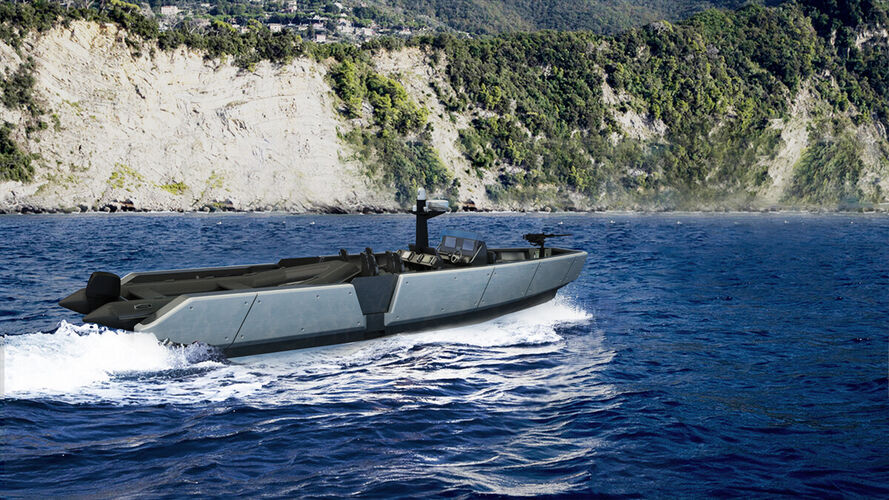

The NIMON Tactical is designed for maximum agility, speed, and operational efficiency in demanding conditions. With a hull optimized for high-speed performance and stability, this vessel delivers unmatched handling in both calm and rough waters. Advanced hydrodynamics and a rugged design enable crews to operate safely and effectively, even at high speeds and under heavy load. The Tactical is suited for a wide range of missions — from patrol to rapid response — and is built with a focus on usability, safety, and reliability.
CONSTRUCTION

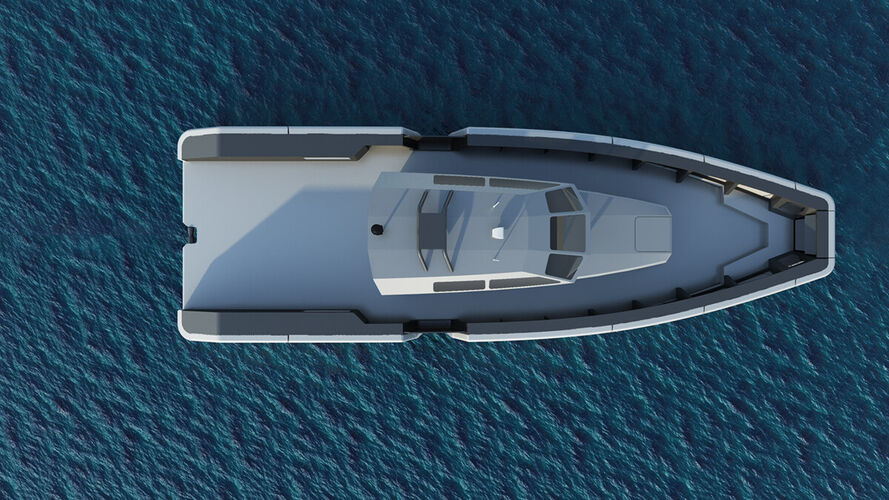

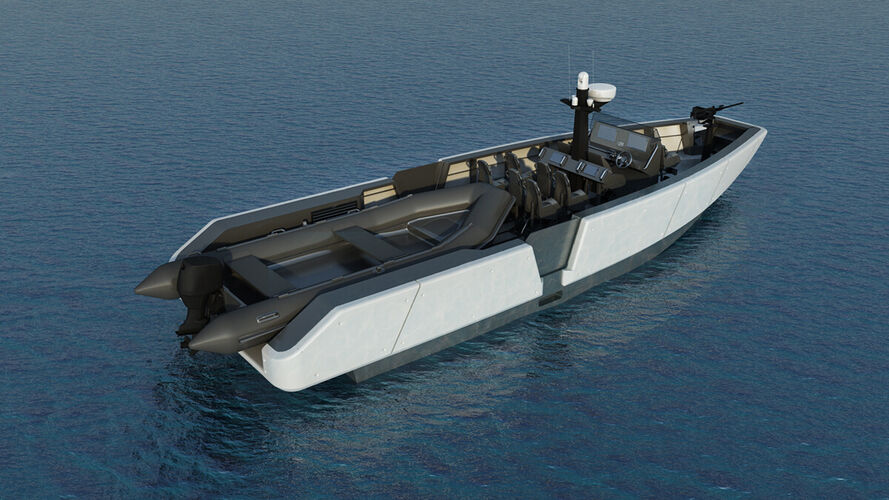

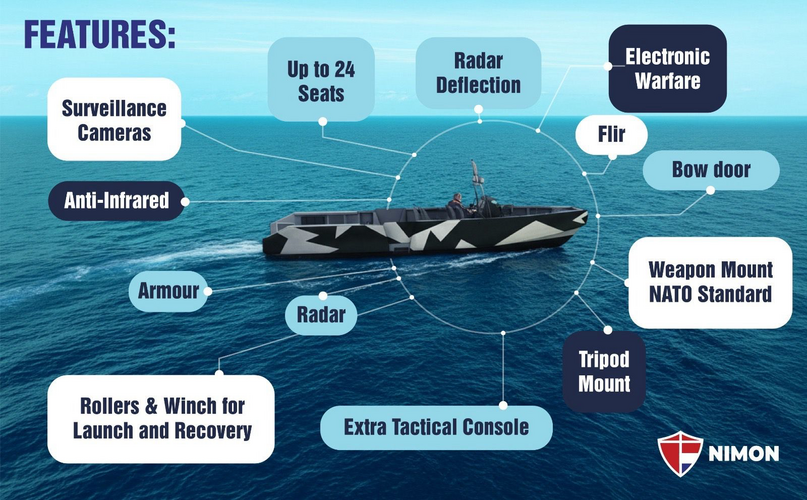

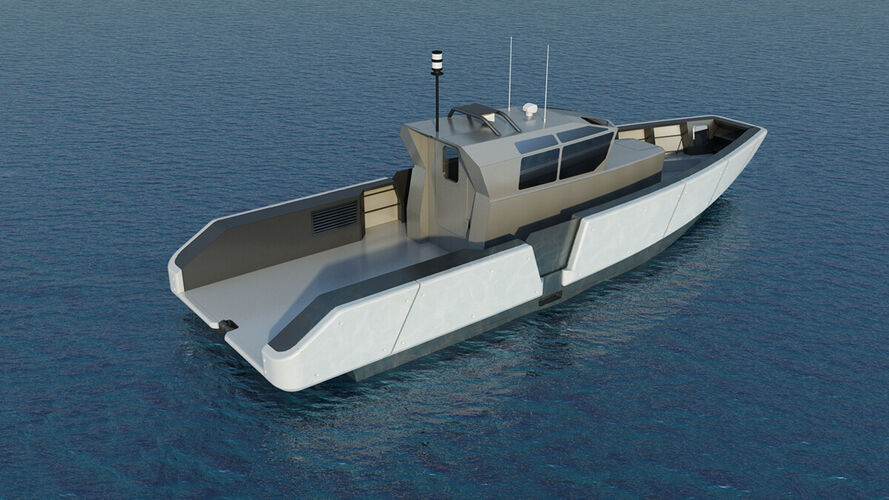

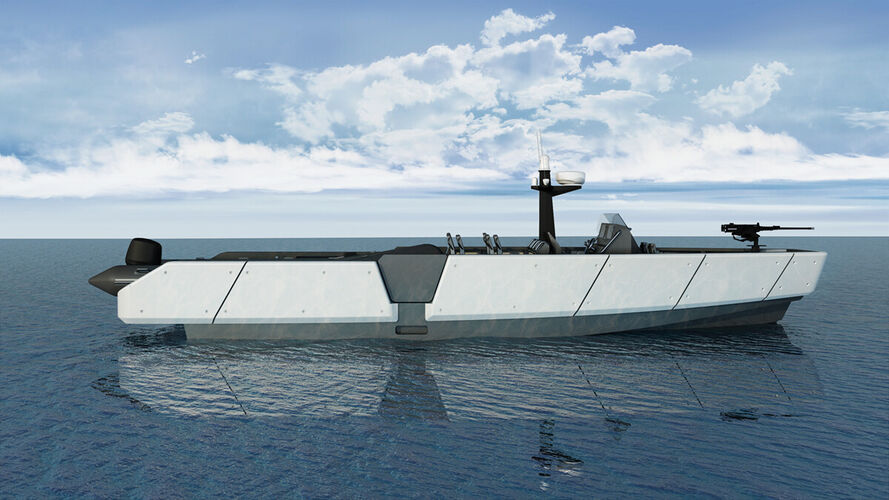

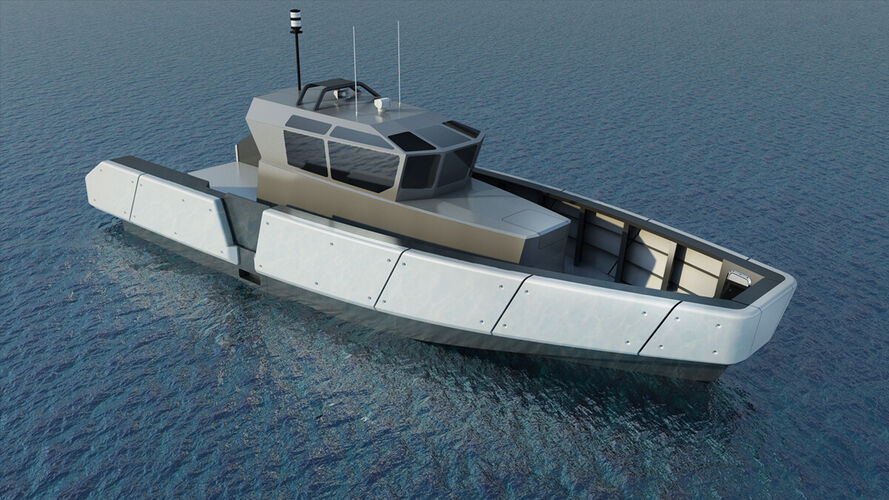

One of the key advantages of the NIMON Tactical is its modular construction. This allows the vessel to be easily configured to meet specific mission requirements — whether it's communications gear, weapons systems, or medical support. The ergonomic layout and smart storage solutions ensure that every inch of space is used efficiently. With a low-maintenance design and a long operational lifespan, the Tactical offers a sustainable investment for both defense and civil security forces.
| Main Particulars | |
|---|---|
| Dimensions | |
| Length Overall | 11.52 m |
| Length of Hull | 10.10 m |
| Beam Overall | 3.78 m |
| Beam of Hull | 3.50 m |
| Depth of Hull | 1.25 m |
| Full Load Hull Draft | 0.85 m |
| Light Load Hull Draft | 0.70 m |
| Extreme Navigational Draft | 1.13 m |
| Transport Dimensions | LxBxH 11.52m x 3.50m x 2.80m |
| Weights | |
| Empty Craft Weight | 7300 kg |
| Light Load Displacement | 8800 kg |
| Full Load Displacement | 11800 kg |
| Capacities | |
| Fuel | 2x 1000 l |
| Payload Deck Area | 2.70 m x 6.50 m |
| Payload Carrying Capacity | 2850 kg (excluding fuel) |
| Performance | |
| Maximum Speed, light load | >45 kn |
| Maximum Speed, full load | >40 kn |
| Cruise Speed | 32 kn |
| Cruising Range, half load | >550 nm @ 32kn |
| Machinery and Vessel Systems | |
|---|---|
| Propulsion | |

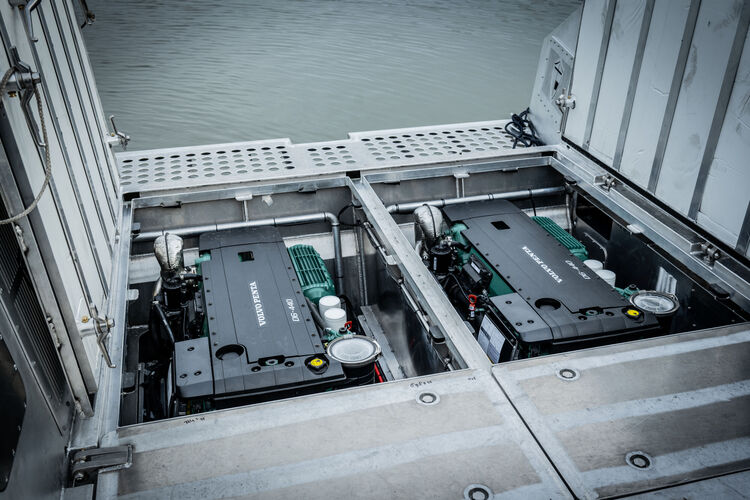

| Engine | Volvo Penta D6H-480 353 kW @ 3700 RPM 5.5 liter, in-line 6 cylinder |
| Sterndrive | Volvo Penta DPI sterndrive Counter-rotating propellers Fully integrated seawater intake, engine exhaust, steering, clutch and reverse. Hydraulic gear shift with low speed mode |
| Interceptor System | Humphree HE750 interceptor system Electronic actuation 75mm stroke |
